Fig. 35

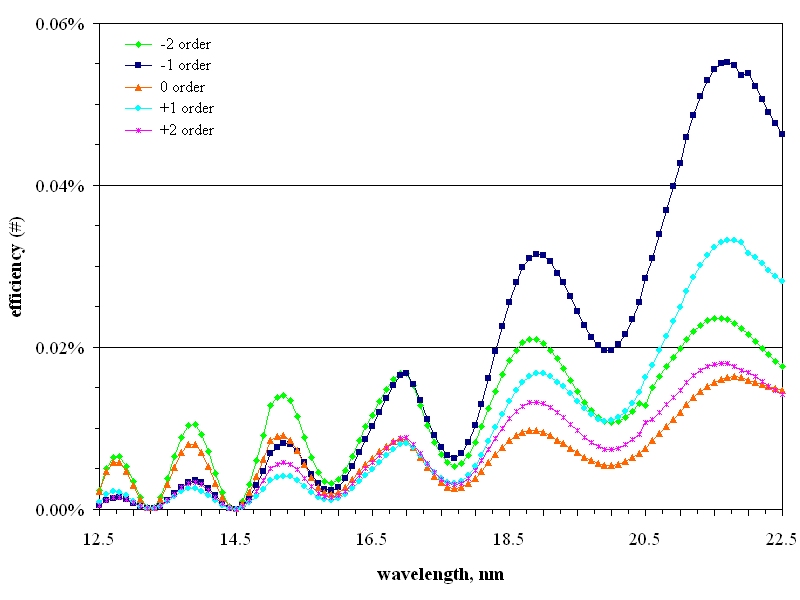

The efficiency certificate of orders of a replica of a 2400 g/mm blazed holographic concave grating working in the soft X-ray—EUV range. Efficiency calculated for the average AFM groove profile of 8.5 nm depth and RIs taken from the CXRO compilation (< 15 nm) and from the Palik handbook (>= 15 nm).
